What is a pneumatic cylinder?

What is a pneumatic cylinder?

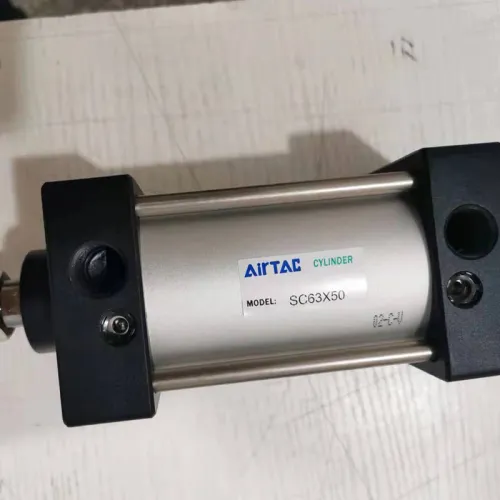

A pneumatic cylinder, also known as an air cylinder, is a mechanical device that converts compressed air power into linear motion. It is a vital component of pneumatic systems, which use compressed air to transmit and control energy. Pneumatic cylinders are commonly used in various industrial applications for tasks such as lifting, pushing, pulling, and moving objects.

The basic construction of a pneumatic cylinder consists of a cylindrical barrel, a piston, and end caps. The barrel is typically made of metal and houses the piston assembly. The piston divides the cylinder into two chambers: the rod side and the cap side. Compressed air is supplied to one side of the piston, creating pressure that drives the piston and generates linear motion.

Get A Quote

Equipment professional

Our company took the lead and passed the ISO9001 quality system certification. The company specializes in cooperating with State Grid, South Grid, high and low voltage electrical equipment, and supporting services

Business philosophy

The company has always adhered to the "quality" for survival, reputation, as the leading business philosophy, has an excellent team of engineers, perfect production equipment and after-sales service.

After sales service and technical assistance

With perfect after-sales service and technical assistance services, the company can provide after-sales service and technical support according to customer requirements and needs, and respond in the shortest time.

Efficient production efficiency

The machine ensures the maximum utilization of raw materials, improves the efficiency of the production line, and improves the stability of the customer's products.

Related Products

More items about pneumatic cylinder

about us

We Have The Best Solutions for Your Business

Chongqing Xinsheng Technology Electric Co., Ltd. was founded in 2002 and is located in Chongqing, China, one of the four major municipalities in China.

It is a high-tech company engaged in the research, development, production and sales of pneumatic, air cylinder, high and low voltage electrical, outdoor vacuum circuit breakers, indoor high voltage vacuum circuit breakers, indoor high voltage isolation switches, stainless steel photovoltaic distribution boxes, furniture and household appliances and other products. Technology industry company, its products are widely used in power transmission and distribution, machinery, metallurgy, hydropower, petrochemical, mining, transportation, construction, urban and rural power grid transformation and other power grid home appliance construction projects.

Learn More

The Advantages of Pneumatic Cylinders in Hazardous Environments

Pneumatic cylinders are well-suited for hazardous environments where the use of other types of actuators may be limited. Since pneumatic systems utilize compressed air, they eliminate the risk of sparks, oil leaks, or electrical malfunctions that can lead to explosions or fires. Pneumatic cylinders can be constructed using materials that resist corrosion and withstand exposure to chemicals, making them suitable for demanding applications. With proper safety measures in place, such as explosion-proof components and appropriate certifications, pneumatic cylinders provide a reliable and safe actuation solution in hazardous environments.

Maintaining Pneumatic Cylinder Performance: Best Practices for Longevity and Reliability

To ensure the longevity and reliable operation of pneumatic cylinders, proper maintenance is essential. Regular inspection and cleaning of the cylinder, as well as lubrication of moving parts, help prevent corrosion, reduce friction, and extend the life of the cylinder. Monitoring air quality by using filters and dryers prevents contamination and safeguards internal components. Additionally, promptly addressing any leaks, damaged seals, or worn-out parts helps maintain the optimal performance of the cylinder and ensures a safe working environment.

Enhancing Efficiency and Productivity with Pneumatic Cylinders

Pneumatic cylinders have revolutionized industrial processes by providing efficient and precise motion control. These versatile devices play a critical role in enhancing productivity across a wide range of industries. Whether it's lifting heavy loads, positioning components, or automating repetitive tasks, pneumatic cylinders excel in delivering reliable and fast linear motion. Their ability to generate high forces and rapid actuation speeds ensures optimal efficiency and improved production output.

Pneumatic Cylinder Selection: Finding the Perfect Fit for Your Application

Selecting the right pneumatic cylinder for a specific application is crucial to achieve optimal performance and reliability. It involves considering factors such as load requirements, stroke length, operating pressure, and environmental conditions. Manufacturers offer a variety of pneumatic cylinders, including compact cylinders for space-constrained applications, high-force cylinders for heavy-duty tasks, and specialized cylinders for challenging environments. Careful consideration of these factors and consulting with pneumatic experts can help ensure the selection of a cylinder that perfectly fits the application's needs.

User Reviews

What users say about Us

The quality is very reliable, looking forward to the next purchase.

Tony

Very impressed with the quality of the sample, and the communication. We have placed a production order as a result.

Eli

I was shocked when I received the product, the quality is very good, very practical and meets my requirements.

Henry

The communication with the supplier was very pleasant and the product provided was very good as I asked, so I placed the order

Vito
Frequently Asked Question

Do you have any question?

Pneumatic cylinders offer several advantages, including simplicity of design, reliability, cost-effectiveness, and smooth operation. They are easy to install and maintain, provide precise linear motion, and can handle a wide range of loads. Pneumatic systems are also considered safe as they use compressed air, which is non-toxic and non-flammable.

When selecting a pneumatic cylinder, consider factors such as the required force, stroke length, operating pressure, and the size and weight of the load. Bore size and rod diameter are crucial specifications to match with the application's requirements. Consulting with pneumatic cylinder suppliers or experts can help in determining the most suitable cylinder for your specific application.

Single-acting cylinders have air pressure applied to only one side of the piston, which generates force in one direction. The return stroke is usually achieved by a spring or other external force. In contrast, double-acting cylinders have air pressure applied on both sides of the piston, enabling bidirectional motion without the need for external forces. Double-acting cylinders provide more flexibility in controlling the direction of motion.

Regular maintenance is essential for the optimal performance and longevity of pneumatic cylinders. This includes lubricating the cylinder according to the manufacturer's guidelines, ensuring clean and dry compressed air supply, and periodically checking for leaks, wear, or damage. It is also crucial to use proper filtration and pressure regulation to protect the cylinder and other pneumatic components.
